CNS Trend M

  • Wall mounted convection electric heater
  • Modern, slimline design
  • Quiet, even heat distribution

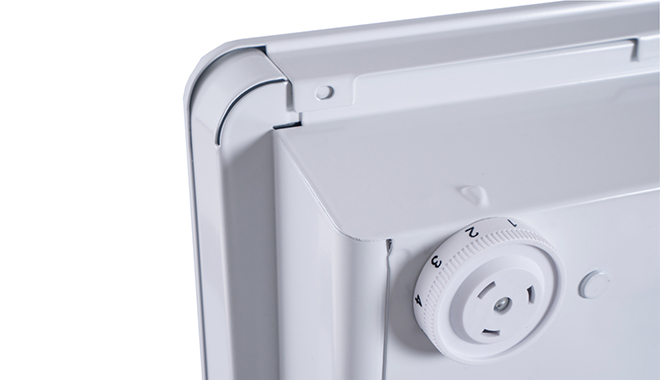

  • Variable temperature selection
  • Easy wall mounted installation
Ask Quick Question

Product Overview

The CNS Trend M electric panel heater looks the part in any room thanks to its slimline, modern design. Available in three sizes, all heaters in the range are compact at only 10cm deep but generate great levels of heating comfort. These robust units offer variable temperature selection from 5°C to 35°C, and they heat immediately and quietly with steady radiant heat.

Product Details

Technical Data

Model number CNS 100 Trend M CNS 150 Trend M CNS 200 Trend M
Output 1.0kW 1.5kW 2.0kW
Current 4.2A 6.3A 8.3A
Connection 1/N/PE ~ 240V
Temperature adjustment 5 – 35 °C
IP rating IP24
Width 426mm 582mm 738mm
Height 450mm 450mm 450mm
Depth 100mm 100mm 100mm
Weight 4.6kg 6.0kg 7.7kg
Installation Wall mounted
Colour Alpine white


File Category Type Download
CNS Trend M DatasheetData SheetPDF
907.27 kB
CNS Trend M Operation & Installation GuideOperation and Installation GuidePDF
2.34 MB
CNS Space Heaters WarrantyWarrantyPDF
129.45 kB


How many sizes are available in the CNS Trend M convection wall mounted panel heater?

The CNS Trend M wall-mounted panel heaters are available in three sizes, which can suit rooms from 10m2 up to 20m2. As a general guide for sizing a heater to a room: 1kW output heats up to 10m2.
