DHCE 6/50 / DHCE 8/50

  • Modern carbon look design
  • Electronically controlled
  • Three selectable temperature outputs for greater convenience
  • Delivers a maximum of 50 degree Celsius hot water
  • No safe tray or drainage required (check local regulations)
Ask Quick Question

Product Overview

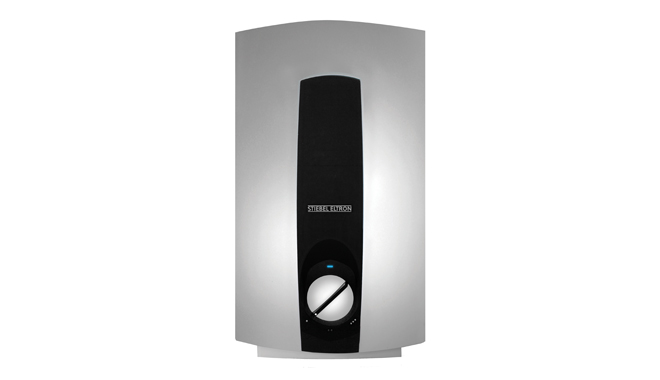

Electronically controlled instant hot water up to 50°C with the DHCE 6/50 and DHCE 8/50.

The electronically controlled DHCE single phase instantaneous water heaters from STIEBEL ELTRON. These single phase instant hot water systems are ideal for low flow installations as the water heater has a switch on flow rate at only 1.5 litres per minute. With installation flexibility in mind, the DHCE hot water system is compact in design and ideal for those applications where space is tight.

Available at:
Or your local plumbing supply store.

Product Details

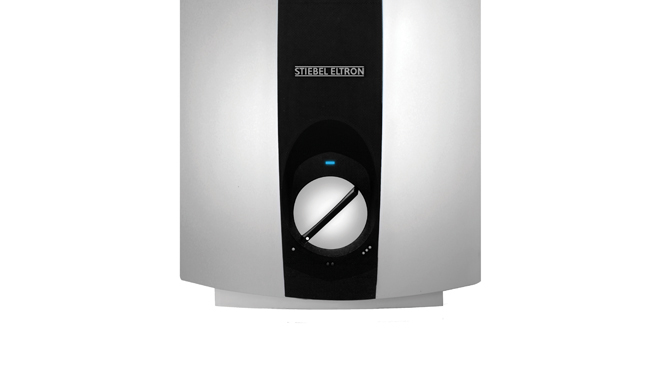

Modern design

  • Modern carbon look design
  • Electronically controlled
  • Three selectable temperature outputs for greater convenience
  • Tubular heating element

Installation flexibility

  • No safe tray or drainage required (check local regulations)
  • Space saving compact design

Save water and energy

The DHCE compact water heater utilises electronic control that helps to save energy and water compared to older style hydraulically controlled instantaneous water heaters.

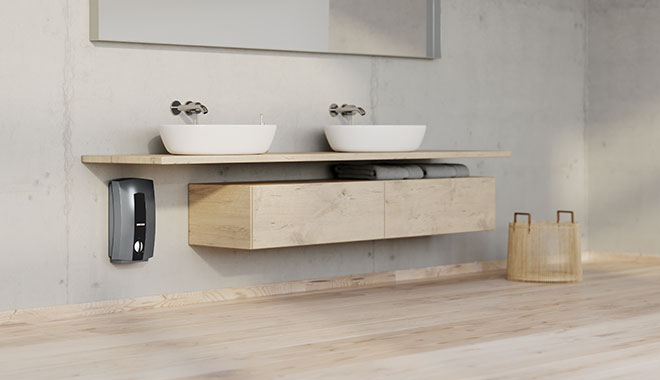

In addition, the compact design allows for close to the point of use installation to help save water by reducing the time it takes to deliver hot water to the outlet. The advantage of an instantaneous water heater is that no heat is lost, and energy wasted, to store hot water at temperature. Energy is only required to heat water when the hot water outlet is switched on.

Available in two electrical sizes:

  • DHCE 6/50 - 7.1kW, 30 Amps, single phase 240V
  • DHCE 8/50 - 9.5kW, 40 Amps, single phase 240V


  • 5 year full parts and labour domestic warranty*

*Conditions apply - refer warranty policy for full details.

Technical Data

Model number DHCE 6/50 DHCE 8/50
Rated output (240V) 7.1kW 9.5kW
Rated current (240V) 30Amp 40Amp
Phases 1/N/PE/AC 220..240V 1/N/PE/AC 220..240V
Electrical Installation As per AS/NZS3000
Installation requirements AS/NZS3500.4.2 & local requirements
Switch on flow rate (minimum flow rate required to switch on the water heater) 1.5L/min 1.5L/min
Permissible operating pressure 1000kPa 1000kPa
Temperature adjustment 40°C 45°C 50°C 40°C 45°C 50°C
IP Rating IP25 IP25
Height 360mm 360mm
Width 200mm 200mm
Depth 110mm 110mm
Weight (filled with water) 2.45kg 2.45kg
Colour Silver look Silver look
Nominal capacity 0.45L 0.45L
Approvals WaterMark Lic No. WMKA21273, AS3498
For one/several draw off points Yes/Yes Yes/Yes
Heating system Tubular Tubular
Electronic flow rate control No No
Electronic air detection system No No
Accepts pre-heated water (solar) No No
Programmable temperature No No


File Category Type Download
DHCE 6/50 Data SheetData SheetPDF
739.80 kB
DHCE 8/50 Data SheetData SheetPDF
739.80 kB
DHCE Operation and Installation GuideOperation and Installation GuidePDF
3.62 MB
DHCE 6/50 / DHCE 8/50 WarrantyWarrantyPDF
156.37 kB
Revit file of STIEBEL ELTRON's DHCETechnical DrawingRFA
396.00 kB
STIEBEL ELTRON Tech Line Drawing DHCE 50Technical DrawingJPG
1.41 MB
STIEBEL ELTRON Exploded Diagram DHCEExploded DiagramPDF
294.42 kB
Model & Serial Number LocationSerial Number LocationPDF
119.63 kB


1. Does the DHCE operate on a standard 10 Amp power point with three-pin plug?

No, all of the DHCE single phase instantaneous water heaters require a dedicated hard-wired circuit as they draw more than 10 Amps.

2. Where can I install the unit?

The DHCE instant hot water systems can be installed almost anywhere due to their compact design. The water heater does not require ventilation, relief drain or safe trays so it can be installed in a cupboard, in the roof space, below the sink, in a service cavity, in a Euro laundry just to name a few options.

3. Are the DHCE water heaters suitable to use with low flow tapware?

Yes, the DHCE has a switch on flow rate of only 1.5L/min making them ideal water heaters to use with low flow tapware.

4. Can I replace my single phase electric storage water heaters with a DHCE instantaneous electric water heater?

The DHCE instant hot water system will not deliver the same temperature hot water at the same flow rates as an electric storage water heater. Please contact our customer service team on 09 486 2221 to determine which instantaneous water heater is right for your application.

5. How far can the DHCE be installed away from the hot water outlets?

The DHCEs are designed to be installed as close as practical to the most used hot water outlet. Installing closer to the point of use can help to save water and energy by delivering hot water quickly to the outlet. The STIEBEL ELTRON single phase electric instantaneous water heaters are designed to service multiple outlets (note that this is will depend on the DHCE model selected) located several metres away from the system.
