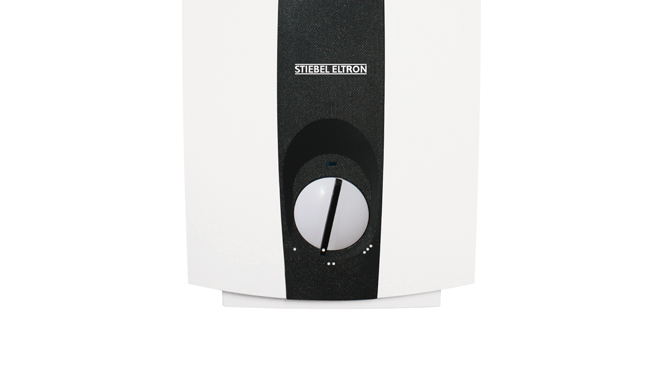

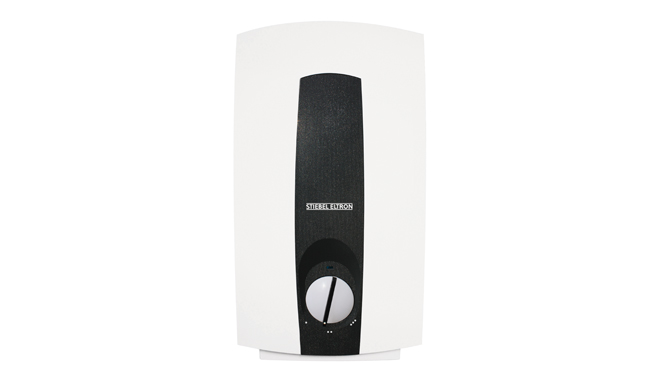

DHCE 8/60
- Delivers up to 60 degree Celsius hot water
- Electronically controlled
- Three selectable temperature outputs for greater convenience
- Space saving compact design
Product Overview
Electronically controlled DHCE 8/60 delivers hot water instantly up to 60°C.
The STIEBEL ELTRON DHCE single phase instantaneous water heater is electronically controlled and has been designed for low flow installations with a switch on flow rate at only 1.5 litres per minute. Compact in size, the DHCE can be installed in areas where space is premium.
Available at:
Product Details
High quality design
- Electronically controlled
- Three selectable temperature outputs for greater convenience
- Tubular heating element
- WaterMark approved, Lic. No. WMKA21273, AS3498
Installation flexibility
- Delivers up to 60 degree Celsius hot water
- No safe tray or drainage required (check local regulations)
- Space saving compact design
Efficiency
The DHCE compact water heater is electronically controlled which helps to save energy and water compared to older style hydraulically controlled instantaneous water heaters.
The compact design of the DHCE is ideal for close to the point of use installation and also helps save water and energy by reducing the lag time for hot water to arrive at the outlet.
Available in the following electrical size:
- DHCE 8/60 - 9.5kW, 40 Amps, single phase 240V
Warranty
- 5 Year full parts and labour domestic warranty*
*Conditions apply - refer warranty policy for full details.
Technical Data
| Model number | DHCE 8/60 |
| Rated output (240V) | 9.5kW |
| Rated current (240V) | 40Amp |
| Phases | 1/N/PE/AC 220..240V |
| Electrical Installation | As per AS/NZS3000 |
| Installation requirements | AS/NZS3500.4.2 & local requirements |
| Switch on flow rate (minimum flow rate required to switch on the water heater) | 1.5L/min |
| Permissible operating pressure | 1000kPa |
| Temperature adjustment | 40°C 50°C 60°C |
| IP Rating | IP25 |
| Height | 360mm |
| Width | 200mm |
| Depth | 110mm |
| Weight (filled with water) | 2.45kg |
| Colour | white |
| Nominal capacity | 0.45L |
| Approvals | WaterMark Lic No. WMKA21273, AS3498 |
| For one/several draw off points | Yes/Yes |
| Heating system | Tubular |
| Electronic flow rate control | No |
| Electronic air detection system | No |
| Accepts pre-heated water (solar) | No |
| Programmable temperature | No |
Downloads
FAQ
No, the DHCE single phase instantaneous water heaters require a dedicated hard wired circuit as they draw more than 10 Amps.
The DHCE 8/60 instant hot water systems can be installed almost anywhere due to their compact design. The water heater does not require ventilation, relief drain or safe trays so it can be installed in a cupboard, in the roof space, below the sink, in a service cavity just to name a few options.
Yes, the DHCE has a switch on flow rate of only 1.5L/min making them ideal water heaters to use with low flow tapware.
The DHCE 8/60 instant hot water system will not deliver the same temperature hot water at the same flow rates as an electric storage water heater. Please contact our customer service team on 09 486 2221 to determine which instantaneous water heater is right for your application.
The DHCE 8/60 is designed to be installed as close as practical to the most used hot water outlet. Installing closer to the point of use can help to save water and energy by delivering hot water quickly to the outlet. The STIEBEL ELTRON single phase electric instantaneous water heaters are designed to service multiple outlets located several metres away from the system.
