Open Vented Compact Storage Water Heater

MES open vented standard single lever sink mixer

Standard spout design ideal for a range of decors
3 star WELS rating
Maximum 7L/min flow rate
Open vented design to suit the SNU water heater

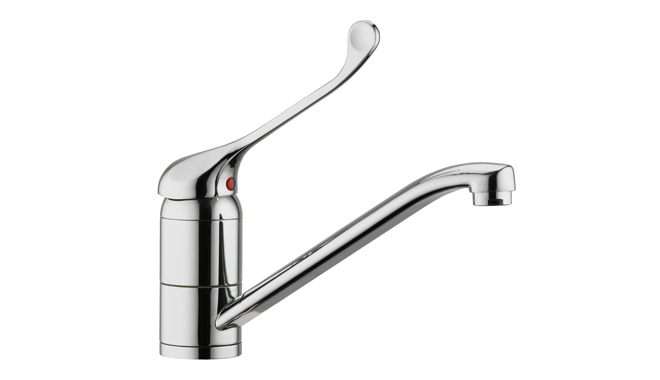

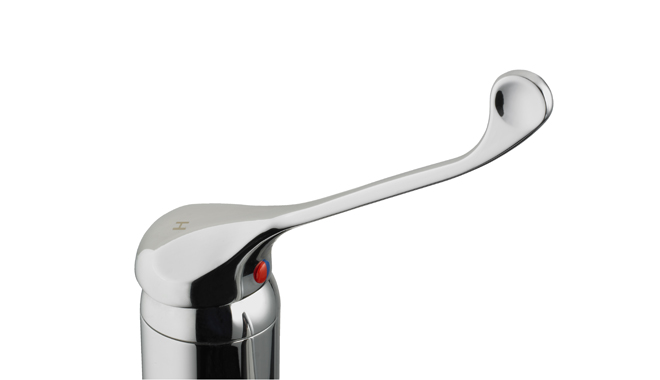

Extended lever also available (sold separately)

Ask Quick Question

Product Overview

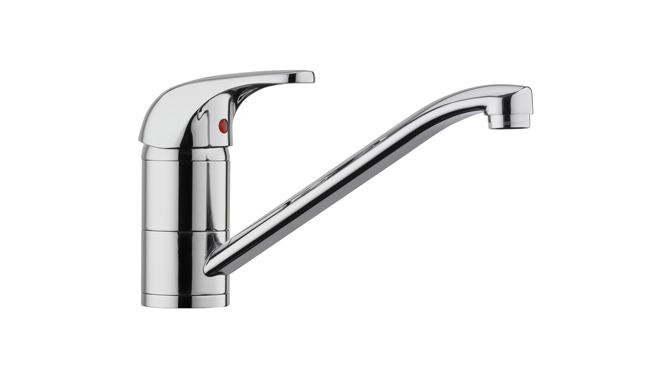

MES open vented standard single lever sink mixer to suit the SNU water heater

The MES standard single lever swivel sink mixer is suitable for use with the STIEBEL ELTRON SNU 5 and SNU 10 compact storage water heater. The open vented design of the SNU requires one of the four styles of STIEBEL ELTRON taps to be fitted with the product. The MES sink mixer has a three star WELS rating, with a maximum flow rate of 7 litres per minute.

Available at:

Or your local plumbing supply store.

Product Details

Open vented sink mixer

Suitable for use with the SNU 5 and SNU 10
3 Star WELS rated
Maximum flow rate 7L/min

Technical Data

Model number	MES
WELS rating	3 star
Maximum flow rate	8L/min

Downloads

File	Category	Type
SNU Sink Mixers Data Sheet	Data Sheet	PDF 367.87 kB
SNU Tapware Warranty	Warranty	PDF 109.09 kB
MES Dimensions	Technical Drawing	PDF 32.49 kB
MES Extended Lever Dimensions	Technical Drawing	PDF 73.18 kB
STIEBEL ELTRON Exploded Diagram MES	Exploded Diagram	PDF 191.90 kB
MES 3D CAD	CAD Data	STL 1.93 MB

FAQ

1. Can a flow straightener be fitted on the MES open vented sink mixer?

No, only a STIEBEL ELTRON flow straightener can be used with this tap, non approved aerators are not be fitted to the MES sink mixer.

2. Can a water filter be fitted on the end of the spout of the MES sink mixer?

No, as an open vented tap there must not be any restriction on the spout as it is used to vent the water heater.

3. Can the cartridge be changed on the MES open vented sink mixer?

Yes, a replacement cartridge is available for the MES sink mixer.

4. Is there an extended lever option?

Yes, an extended lever is available to suit the MES sink mixer. Sold separately.
