SHC AU

  • Made in Germany
  • Point of use installation eliminates dead legs
  • No waiting time: benefit from immediate hot water
  • Space-saving under bench installation
  • Ideal for multiple outlets
  • Suitable for use with all taps
  • Compact modern design
  • Enamelled steel tank manufactured by STIEBEL ELTRON

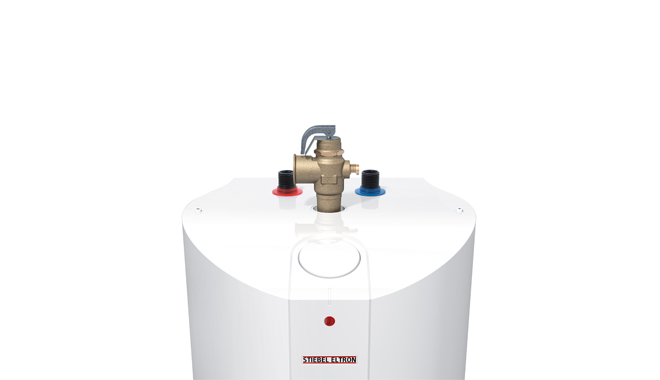

  • Includes PTR valve and reducing bush
  • Wall mounted design to easily adjust height
  • Insulated design minimises heat losses thus saving energy
  • Temperature set at 60°C
  • 1.6 kW heating element
  • Operates on 6.5 Amp 230V, plugs into power point
Ask Quick Question

Product Overview

Hot water right at the point of use, ideal for multiple outlets

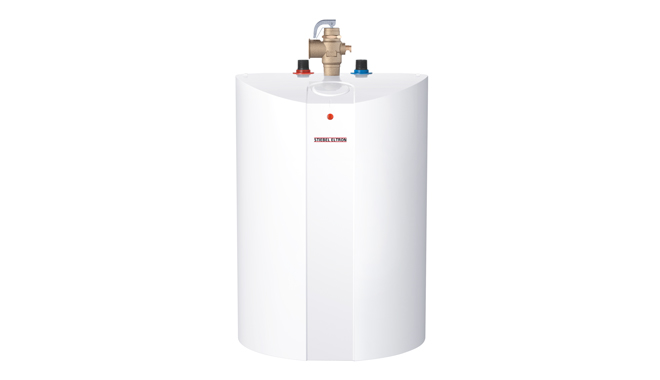

Made in Germany the STIEBEL ELTRON SHC 15 AU under bench mains pressure water heater delivers hot water quickly to multiple sinks or basins. These point of use water heaters eliminate long runs of pipework for isolated sinks and basins and can greatly reduce the waiting time for hot water to arrive at the outlet. Installed directly underneath the basin or sink these water heaters are compact in design to take up less space in the cupboard.

Available at:
Or your local plumbing supply store.

Product Details

High quality design

  • Made in Germany with premium quality parts
  • Certified enamelled steel tank manufactured by STIEBEL ELTRON
  • Designed for 2+ fixture outlets
  • WaterMark approved. Lic No. WMKA00301, AS3498

Energy and water saving

  • Low minimum standby power consumption
  • Installed close to the point of use helps save water

Easy installation

  • Compact space saving design
  • Installed underneath sinks or basins, ideal for mulitple points of use
  • 230V - 3 pin power cord with earthed plug 6.5 Amp
  • Operates with all WELS approved tapware

Warranty

  • 5 year cylinder, 3 year parts & labour and 1 year PTR valve domestic water heater warranty*

*Conditions apply - refer warranty policy for full details.

Technical Data

Model number SHC 15 AU
Rated output 1.6 kW
Rated voltage 230 V / plugs into GPO
Rated current 6.5 Amp
Phases 1/N/PE
Electrical Installation As per AS/NZS3000
Installation requirements AS/NZS3500.4.2 & local requirements
Permissible operating pressure 600 kPa
Temperature setting 60°C
Tank capacity 15 Litres
Mixed water volume at 40°C from single draw off 23 Litres
Standby energy consumption / 24 hours at 65°C 0.53 kWh
IP Rating IP24 D
Height (incl. PTR valve) 523 mm
Width 320 mm
Depth 318 mm
Weight (filled with water) 24.0 kg
Colour white
Approvals WaterMark Lic No. WMKA00301, AS3498
For multiple draw off points Yes

Downloads

File Category Type Download
SHC Data SheetData SheetPDF
1.04 MB
SHC AU Operation and Installation GuideOperation and Installation GuidePDF
2.43 MB
SHC 10 AU / SHC 15 AU WarrantyWarrantyPDF
111.69 kB
Revit file of STIEBEL ELTRON's SHCTechnical DrawingRFA
604.00 kB
STIEBEL ELTRON Tech Line Drawing SHC15Technical DrawingJPG
885.86 kB
Model & Serial Number LocationSerial Number LocationPDF
92.04 kB

FAQ

Can I install the SHC water heaters with my existing sink mixer?

Yes, the SHC water heaters are mains pressure storage water heaters and can be used with all WELS rated tapware including low flow taps.

Can I connect two taps to the SHC mains pressure water heater?

Yes, the SHC water heaters are designed as a multipoint of use water heater and can be operated with multiple taps.

Do these water heaters create hot water that is hot enough to make tea and coffee?

No, the SHC is designed to provide hot and cold water to a sink. These units are not a boiling or chilled system.

Where can I purchase the SHC water heater from?

The SHC is available from all leading plumbing stores.
