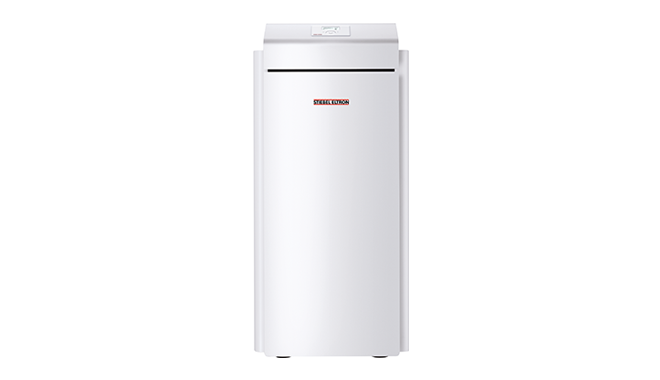

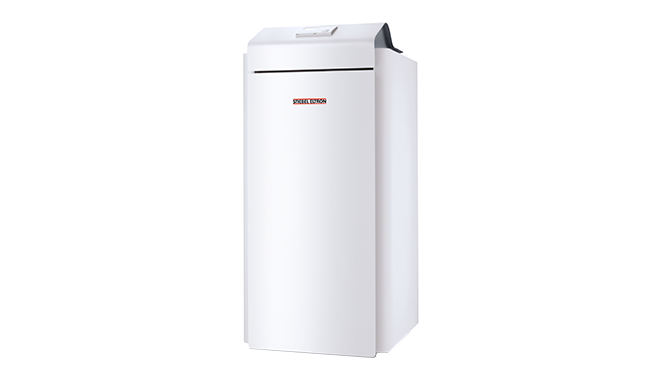

WPF 13 S / 13 / 16

Replacement Product:
WPE-I geothermal heat pump
WPE-I 33 / 44 / 59 / 87
  • Geothermal hydronic heat pump for domestic or commercial applications
  • 20.18 - 87 kW heating output
  • Cascade up to 16 geothermal heat pumps for higher output
  • Easy system control
  • Quiet operation
View WPE-I 33 / 44 / 59 / 87
  • Geothermal hydronic heat pump installed indoors for underfloor and radiator heating
  • Compact design for easy placement in your home
  • Optimal energy use through efficient circulation pump
  • Timeless design
  • Highest European energy efficiency rating A++ for low energy bills
  • Extremely quiet operation thanks to advanced sound technology
  • Ideal to use in retrofits: up to 65° C flow temperature
Ask Quick Question

Product Overview

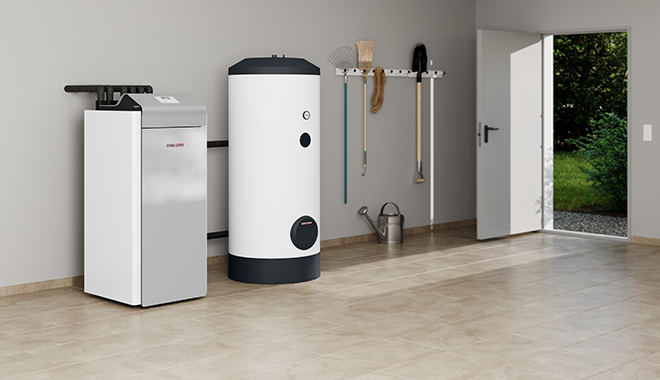

Save money while saving energy - the affordable WPF (S) basic series provides an ideal alternative to highly integrated geothermal heat pumps. Featuring top STIEBEL ELTRON quality, the WPF (S) basic is designed for easy installation. Thanks to its compact and timeless design, it fits nicely into your home without wasting valuable space. The WPF M range of geothermal hydronic heat pumps can be used with up to two controllers, making system control very easy. The modules can be matched, stage-by-stage, to your individual requirements, to deliver an energy supply solution for DHW and central heating.

Technical Data

Model WPF 13 S WPF 13 WPF 16
Energy efficiency class A++/A++ A++/A++ A++/A++
Output at B0/W35 (EN 14511) 13.01 kW 10.31 kW 17.02 kW
Coefficient of performance at B0/W35 (EN 14511) 4.75 4.82 4.54
Sound pressure level at a distance of 5 m 28 dB(A) 28 dB(A) 31 dB(A)
Max. application limit on the heating side 60° C 65° C 65° C
Height 1319mm 1319mm 1319mm
Width 598mm 598mm 598mm
Depth 658mm 658mm 658mm
Weight 171kg 171kg 181kg


File Category Type Download
WPF 10 Data SheetData SheetPDF
249.49 kB
WPF 13 Data SheetData SheetPDF
249.26 kB
WPF 13S Data SheetData SheetPDF
412.04 kB
WPF 16 Data SheetData SheetPDF
244.78 kB
WPF Operation and Installation GuideOperation and Installation GuidePDF
10.83 MB
Geothermal Hydronic Heat Pump WarrantyWarrantyPDF
114.18 kB
