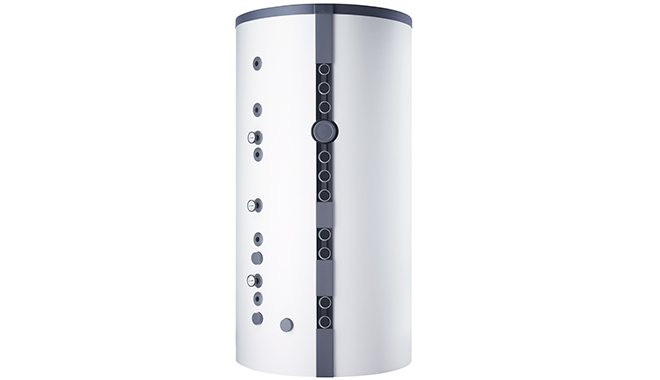

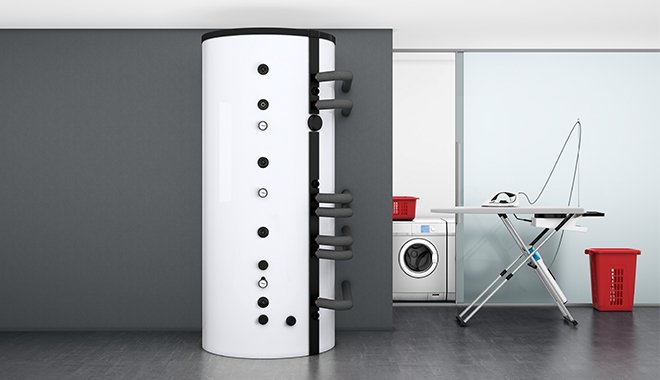

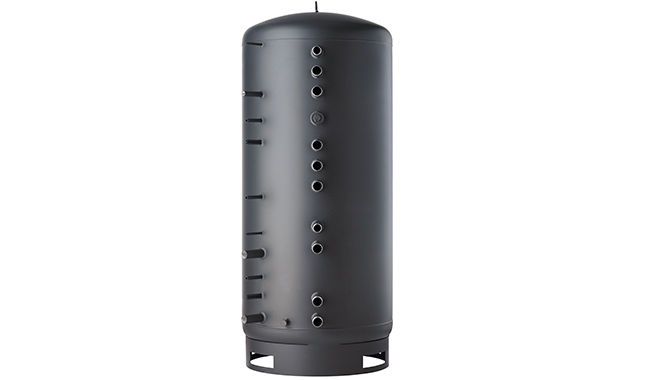

Instantaneous Water Cylinders
- Buffer cylinder with added instantaneous domestic hot water coil
- Made in Germany
- Compatible with all STIEBEL ELTRON hydronic heat pumps
- 599 – 1399 L buffer capacity
- Highly efficient insulation available
- Can be combined with a solar thermal system
Product Overview
The SBS cylinders come into their own where space is at a premium, as they are buffer and instantaneous water cylinder in one. This enables the highly effective indirect coils to improve the hygiene inside the cylinder since only smaller amounts of DHW need to be kept hot to deliver hot water to the entire house. The SOL versions allow an additional renewable energy source to be integrated easily into the system.
Product Details
Technical Data
Model number | SBS 601 W [SOL] | SBS 801 W [SOL] |
Rated capacity | 599 L | 740 L |
Height | 1665 mm | 1830 mm |
Diameter | 970 mm | 1010 mm |
Indirect coil surface area hot water + lower |
6.0 m2 + 1.5 m2 | 6.5 m2 + 2.4 m2 |
Cold water inlet | G 1 1/4 A | G 1 1/4 A |
Hot water outlet | G 1 1/4 A | G 1 1/4 A |
Heat pump connection | G 1 1/2 A | G 1 1/2 A |
Heating flow/return connection | G 1 1/2 A | G 1 1/2 A |
Solar flow + return | G 1 | G 1 |
Weight | 180 kg | 195 kg |
Solar Thermal Compatible | SOL model – max. 12 m2 | SOL model – max. 16 m2 |
Insulation | WDH 601 SBS | WDH 801 SBS |
