LWZ 370 PLUS

Replacement Product:
LWZ 180 and 280 Ventilation with Heat Recovery
LWZ 180 / LWZ 280
  • Centralised ventilation with up to 94% heat recovery
  • Inbuilt display directly on the appliance
  • Made in Germany
  • Passive House Institute certified component
  • Helps prevent condensation and mould through improved ventilation
  • Significantly reduced noise levels
  • Air flow rates 60 - 350 m3/h
View LWZ 180 / LWZ 280
  • Energy efficient with up to 90% heat recovery
  • Designed for air flow rates of 100-400m3/h
  • Quiet operation
  • Low power operation
  • Replaces indoor air with filtered fresh air from outside
  • Quick cooling effect via night ventilation function
  • Pollutants are removed from indoors
  • Prevents dust and pollen build up
  • Prevents condensation and mould through improved ventilation
  • Easily accessible design for filter replacement
  • FEQ air quality sensor (optional accessory)
Ask Quick Question

Product Overview

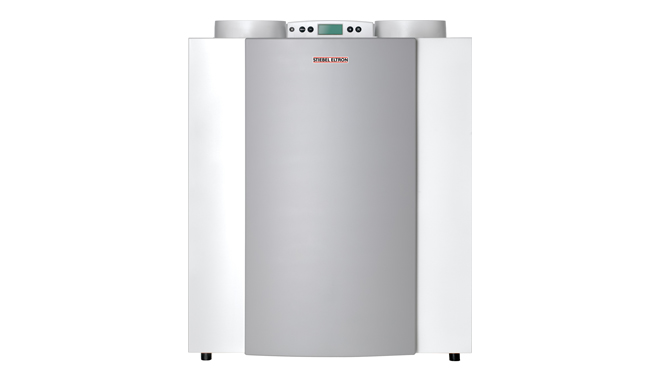

The LWZ 370 Plus is the largest of the centralised ventilation systems offered by STIEBEL ELTRON. Designed to deliver air flow rates of 100-400m3/h the great design can recover up to 90% of the indoor heat.

Product Details

The LWZ 370 Plus removes stale air from inside and replaces this with fresh air from outside through its multiple fans. The two air flows are routed through a unique cross current exchanger which effectively recovers up to 90% of the heat. The energy saving design can help reduce heating costs but also provides a healthy indoor air quality by managing humidity as well as reducing pollutants indoors. The ventilation unit has multiple fan settings to create ideal comfort and the settings can be adjusted by a qualified installer to suit your home perfectly.

Technical Data

Model number LWZ 370 PLUS
Power consumption 21-213 W
Rated voltage 240 V
Air volume flow 100-400 m3/h
IP Rating IP30
Max ambient temperature 60C
Filter class G4
Air duct connection 180 mm
PE condensate drain connection 32 mm
Weight 38 kg
Height 765
Width 677
Depth 567
Sound pressure level (EN 12102) 54 dB (A)

Downloads

File Category Type Download
LWZ 170 E-370 Plus DatasheetData SheetPDF
685.50 kB
LWZ Operation and Installation GuideOperation and Installation GuidePDF
5.21 MB
Heat Recovery Ventilation Warranty WarrantyPDF
124.48 kB

FAQ

1. What size ventilation system do I require?

The size of ventilation system depends on the size of your home and the required air flow rates that need to be achieved. STIEBEL ELTRON has a specification team that can assist you with the selection of a ventilation system and ducting configuration based on your building plans.

2. What is the ducting connection on an LWZ 370 Plus?

The LWZ 370 Plus has extract and supply air connections of 180mm diameter.
