Convection Electric Panel Heaters

CNS wall mounted

Replacement Product:
CNS Trend M
  • Wall mounted convection electric heater
  • Modern, slimline design
  • Quiet, even heat distribution
  • Variable temperature selection
  • Easy wall mounted installation
View CNS Trend M
  • Modern slimline design
  • Quiet, even temperature distribution
  • Variable temperature selection
  • Easy and quick installation
  • Ideal for Asthma and Allergy sufferers with convection heating
Ask Quick Question

Product Overview

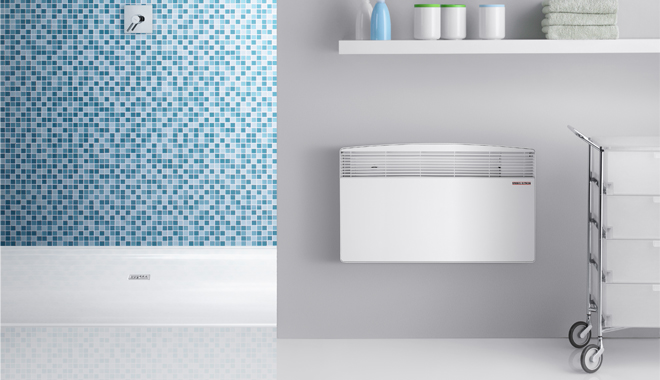

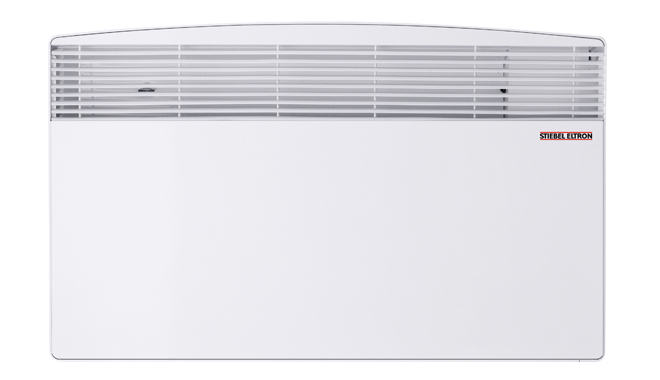

The slimline CNS wall mounted panel heaters from STIEBEL ELTRON are easy to use, safe and controllable, providing discreet heating comfort and reliability. These robust units offer variable temperature selection from 6°C to 30°C, they heat immediately and quietly with a steady radiant heat. When not in use they blend elegantly and unobtrusively into the background. They are easy to install on the wall and require only a standard electrical powerpoint (10Amp) for their electrical connection. Their thermal cut-out, spray proof housing, solid tubular elements and double insulation are just a few examples of STIEBEL ELTRON's assurance of quality.

Available at:
Or your local plumbing/electrical supply store.

Product Details

The CNS wall mounted panel heater are available in four sizes, which can suit room sizes from 10m2 up to 24m2. When deciding on a room heater you should consider the room in which the heater is being installed. The height of the roof and whether the room is insulated will impact what size heater to select. As a general guide for sizing a heater to a room: 1kW output heats up to 10m2.

Technical Data

Model number CNS 100 CNS 150
Power consumption 1kW 1.5kW
Electrical connection 1/N ~ 220-240V 1/N ~ 220-240V
Temperature adjustment range 6-30° Celsius 6-30° Celsius
IP Rating IP24 IP24
Height 450mm 450mm
Width 440mm 590mm
Depth 78mm 78mm
Depth with wall bracket 100mm 100mm
Weight 4.2kg 5.6kg
Model number CNS 200
Power consumption 2kW
Electrical connection 1/N ~ 220-240V
Temperature adjustment range 6-30°Celsius
IP Rating IP24
Height 450mm
Width 740mm
Depth 78mm
Depth with wall bracket 100mm
Weight 7.0kg

Downloads

File Category Type Download
CNS DatasheetData SheetPDF
297.45 kB
CNS Operation and Installation GuideOperation and Installation GuidePDF
1.02 MB
CNS Space Heaters WarrantyWarrantyPDF
129.45 kB
CNS Serial Number LocationSerial Number LocationPDF
266.39 kB

FAQ

1. How many sizes are available in the CNS convection wall mounted panel heater?

There are 4 sizes ranging from 1kW up to 2.0kW.

2. Can the CNS have castors on it?

No, the CNS is only designed for wall-mounted applications.

3. Does the CNS have a fan?

No, the CNS heats the room via natural circulation. The CNS is a convection panel heater.
