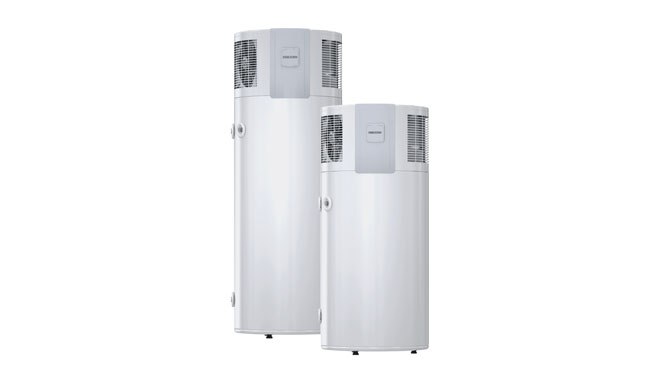

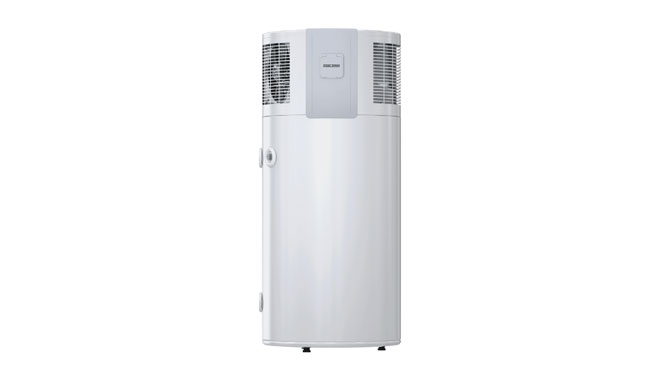

WWK 222H and WWK 302H

  • German engineered for quality and reliability
  • Designed for New Zealand climate conditions
  • Advanced tank insulation to minimise heat loss

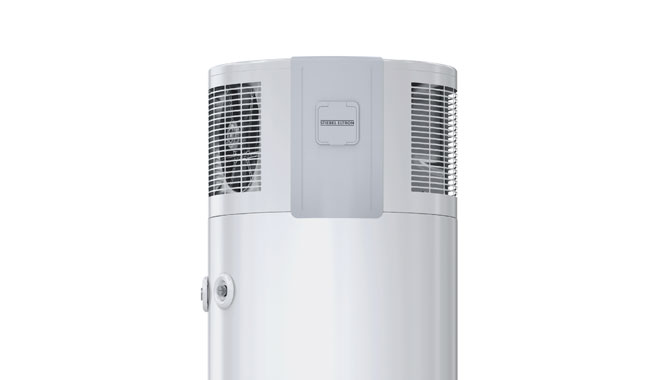

  • Quiet operation with encased compressor design
  • Maintenance-free impressed current anode – suitable for hard or soft water
  • Energy-efficient performance down to -5°C with active defrost
  • Compatible with solar PV systems
Calculate Energy Savings Ask Quick Question

Product Overview

STIEBEL ELTRON's latest hot water heat pumps, the WWK 222H and WWK 302H, set a new benchmark for energy efficient hot water in the New Zealand market. Their modern design combines style with innovation, featuring a maintenance-free impressed current anode, active defrost for reliable operation down to -5°C, solar PV system compatibility, and the convenience of horizontal transport.

Available at:
Or your local plumbing supply store.

Product Details

High-quality design from STIEBEL ELTRON.

  • German engineered, designed for New Zealand conditions
  • Market leader in heat pump technology since 1976
  • 220 litre tank with high volume of hot water can deliver 360 L of 40°C shower temperature water at a cold water temperature of 20°C (302 litre tank delivers 540 litres)
  • Suitable for hard or soft water areas with maintenance free current impressed anode

Installation flexibility

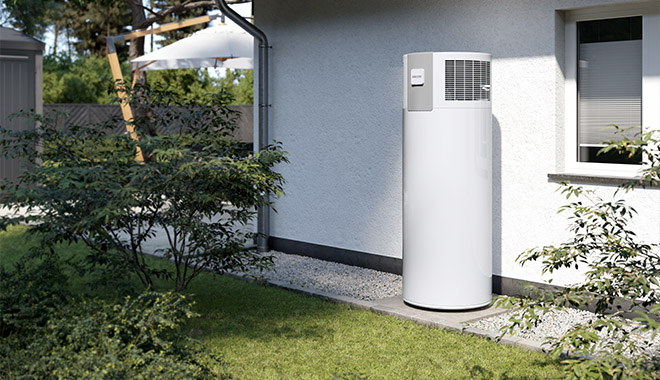

  • Can be installed outdoors or indoors, indoor installation requires 13m³ of clear space
  • Single piece design for ease of installation
  • Active defrost function to assist operations in cold climates
  • Operates in cold climates down to minus 5°C

Energy efficient

  • Energy efficient operation saves up to 74% on hot water energy use*
  • Low power draw at only 2.3 Amps
  • Can operate on extended off-peak power and timers where available

Technical Data

Model number WWK 222H WWK 302H
Power consumption at (EN16147/A15) 0.55 kW 0.55 kW
Power consumption smart element 1.7 kW 1.7 kW
Rated voltage 240 V 240 V
Rated current 10 Amp 10 Amp
Phases 1/N/PE 1/N/PE
Electrical Installation As per AS/NZS3000
Installation requirements AS/NZS3500.4.2 & local requirements
Type of installation Outdoor or Indoor Outdoor or Indoor
Minimum space requirements

Indoor - 13m3
Outdoor - 500mm either side of the grill.
See installation guide

Cylinder capacity 220 Litres 302 Litres
Cylinder material Enamelled Steel
Permissible operating pressure 800 kPa 800 kPa
Seasonal coefficient of performance (COP) 3.38 3.36
Application range -5 to +42°C -5 to +42°C
Air flow rate 550 m3/h 550 m3/h
IP Rating IP24 IP24
Refrigerant R134a R134a
Refrigerant capacity 0.85 kg 0.85 kg
Height 1553-1569 mm (adjustable feet) 1921-1937 mm (adjustable feet)
Diameter 690 mm 690 mm
Weight (empty) 120 kg 135 kg
Approvals WaterMark Lic No. WMKA00301, AS3498
Weight (filled with water) 340 kg 437 kg
Average sound pressure level at 1m distance, free field (EN 15036) 45 dB(A) 45 dB(A)

Downloads

File Category Type Download
WWK Data SheetData SheetPDF
2.09 MB
WWK 222 & 302 Operation and InstallationOperation and Installation GuidePDF
9.35 MB
WWK Operation & Installation Guide Operation and Installation GuidePDF
9.29 MB
WWK 222(H) / WWK 302(H) WarrantyWarrantyPDF
212.58 kB
STIEBEL ELTRON Tech Line Drawing WWK222Technical DrawingPNG
603.19 kB
STIEBEL ELTRON Tech Line Drawing WWK302Technical DrawingPNG
635.13 kB

FAQ

1. What is the difference between the WWK 222H and WWK 302H heat pumps?

The WWK 222H and WWK 302H hot water heat pumps have a smart element situated in the top of the hot water cylinder. This smart element will switch on along with the heat pump function when a high volume of hot water is drawn off from the hot water tank. It assists the heat pump to heat approximately the top 80 litres of the tank, aiding hot water recovery for high-demand situations.

2. What is the active defrost feature on the STIEBEL ELTRON hot water heat pumps?

The WWK 222H and WWK 302H hot water heat pumps have an active defrost function that switches on when the frost monitor detects a build-up of hoar frost at the evaporator. When frost is detected, the fan switches off but the compressor keeps running. Hot vapor is directed to the evaporator while the condenser is shut off, allowing the hot gas to actively defrost the evaporator.

3. Do you manufacture a heat pump with an element?

Yes. The WWK 222H and WWK 302H heat pumps are equipped with smart elements. These models have a 1.7 kW element that, when engaged, will heat approximately the top 80 litres of the tank.

4. How can the heat pump create hot water in the cold without an element?

The heat pumps have an active defrost function that can control any icing that occurs at lower air temperatures. The active defrost function removes hoar frost that forms at the evaporator and then reverts back to hot water generation mode.

5. What is the current draw of the hot water heat pumps?

2.3 Amps on 240 Volts.

6. Does a heat pump make a lot of noise when operating?

Our heat pumps have an encased compressor design to reduce noise. They operate at approximately 45 dB. Heat pumps do make a sound when they are operating, which is the sound of the compressor and fan. The noise level depends on several factors, so we encourage customers to read the operating and installation guide and take into account the positioning of the heat pump when installing.

7. How often should the condensate drain be checked on the hot water heat pumps?

The condensate drain and the top of the condensate pan should be checked at least monthly to remove any blockages that may have occurred due to debris.

8. How big is the tank of the WWK 222H hot water heat pump?

220 litres.

9. How big is the tank of the WWK 302H hot water heat pump?

302 litres.

10. Can the STIEBEL hot water heat pumps be installed indoors?

Yes. These heat pumps have been designed to be installed either indoors or outdoors. A clear space of 13 m3 is required for indoor installations to allow for the cold air from the refrigeration system to diffuse.

11. Can the WWK be used for in-slab and radiator hydronic heating?

The WWK range of hot water heat pumps are not designed for room heating applications. STIEBEL ELTRON has a range of air source hydronic heat pumps and geothermal hydronic heat pumps designed for hydronic heating.
